XY and XYZ Piezo Stages
Motorized Multi-Axis Stages,
2 to 6 Axes


Motorized XY, XYZ and up to 6-axis stages, built from our standard linear, vertical and rotation stages,
one controller, nanometer resolution on every axis.

REQUEST A QUOTE
SEE CONFIGURATIONS & PRICING
Data Sheets & STEP
Made in Europe · Patented Crossfixx™ piezo

AXES

2 to 6

linear · vertical · rotary

LINEAR RESOLUTION

down to 5 nm

closed-loop

ROTARY RESOLUTION

down to 3 µrad

encoder

SPEED

200 mm/s

linear · up to 1080 °/s rotary

HOLDING POWER

0 W

self-locking, every axis

ENVIRONMENT

HV / UHV

no magnetic field generation
An XYZ stage is a motorized positioning system that moves a sample or tool along three linear axes. Xeryon builds XY stages, XYZ stages and multi-axis stages with up to 6 degrees of freedom (6-DOF), including XY theta and XYZ rotation setups — all from our standard linear, vertical and rotation stages, standard mounting brackets and one multi-axis controller.

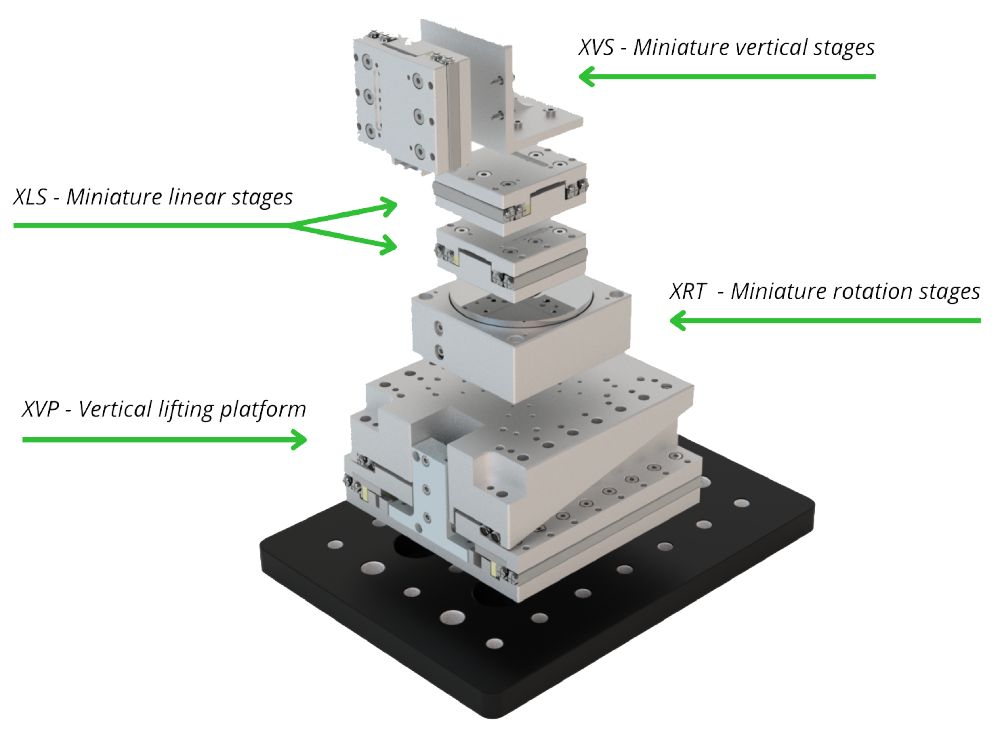

Build Your Multi-Axis Setup

Every axis is a standard Xeryon stage — pick the stages, then the mounting
Nanomotion piezo stage

X AND Y AXES

Linear stages (XLS)
Travel
20–100 mm
Encoder
1250 nm to 5 nm
Speed
up to 200 mm/s
Load
up to 1.5 kg
Nanomotion vertical stage

Z AXIS

Vertical stages (XVS / XVP)
XVS travel
25–50 mm
XVS payload
up to 350 g
XVP-80 travel
10 mm vertical
XVP-80 payload
up to 1.5 kg · 30 N

ROTARY AXES (θ)

Rotation stages (XRT-U)
Range
>360° unlimited
Encoder
down to 3 µrad
Speed
up to 1080 °/s
XVP-80 payload
up to 5 kg

MOUNTING

Brackets & adapter plates
Parallel stacks
integrated holes
Adapter plates
XRT-U to XLS(breadboard)
Brackets
4 L-brackets + T-bracket
STEP files
for every bracket
One controller for the whole stack: the XD-M multi-axis controller comes in 1- to 6-axis versions (XD-M-1 to XD-M-6), runs on 48 V and communicates over USB, RS232, UART or GPIO. Every controller ships with a Windows GUI, plus LabVIEW, MATLAB, C++ and Python support. Building it into your own machine? The XD-OEM is our compact, board-level controller made for OEM integration. See the Stages Combination Guide (PDF).

From 2-Axis XY Stage to 6-Axis Stage: Example Configurations

Real setups our customers run
XYZ Rotation Piezo Stage
4-axis

XYZ – Theta (ψ)

VIEW IN 3D
(opens in a new tab)
4-Axis Piezo Stage
4-AXIS

XY – Theta (ψ) – Theta (ϕ,θ)

VIEW IN 3D
(opens in a new tab)
5-Axis Piezo Stage
5-AXIS

ZYX – Theta (θ) – Theta (ψ)

VIEW IN 3D
(opens in a new tab)
5-AXIS

ZYX – Theta (ψ) – Theta (ϕ,θ)

VIEW IN 3D
(opens in a new tab)

From 2-Axis XY Stage to 6-Axis Stage: Example Configurations

Two simple ways to stack — all with standard Xeryon parts
STACKED FLAT

Parallel mounting

Most stages bolt straight onto each other using their built-in mounting holes. Where two stage sizes don’t match, a standard adapter plate connects them.

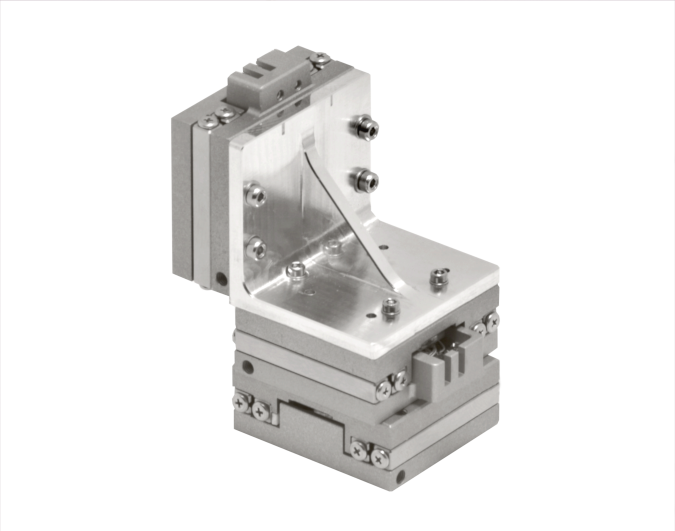

AXES AT 90°

Perpendicular mounting

To add a vertical or upright axis, a standard bracket holds the stages at a right angle. Need something special? We make custom brackets on request.

Frequently Configured Systems

Ready to Run Configurations
Every Xeryon stage is a component that combines easily with the others. Here are four configurations engineers ask for most — put together to make your life easy. Need a different setup? Request any combination and we’ll come back to you.
About the prices: each figure is a from price built on the entry 1250 nm encoder. Encoder resolution drives the price — choose a finer encoder (down to 5 nm) for the same axis and travel, and the price rises accordingly. Most quotes are configured to your target resolution.
XY Piezo Stage

XY System

2 × XLS-3-40-1250
Travel
25 mm / axis
Encoder
1250 nm (up to 5 nm)
Repeatability
±1–2 encoder units
Load
up to 1.5 kg/axis
Speed
up to 200 mm/s

TYPICAL APPLICATIONS
Microscopy positioning
Surface Metrology
Sample/wafer inspection

FROM 1250 NM ENCODER
€ 5.745
excl. VAT
Finer encoder → higher resolution & price
Includes: 2 stages · multi-axis controller · cables · brackets
Also in HV / UHV
Most requested XYZ Piezo Stage

XYZ System

3 × XLS-3-40-1250
Travel
25 mm / axis
Encoder
1250 nm (up to 5 nm)
Repeatability
±1–2 encoder units
Speed
up to 200 mm/s
Hold
self-locking, 0W

TYPICAL APPLICATIONS
3D sample alignment
Micro-assembly & probing
Volumetric scanning

FROM 1250 NM ENCODER
€ 8.530
excl. VAT
Finer encoder → higher resolution & price
Includes: 3 stages · multi-axis controller · cables · brackets
Also in HV / UHV

XYθ System

2 x XLS-3-40-1250 + XRT-U-30
Travel
25 mm / axis (XY)
XY Encoder
1250 nm (up to 5 nm)
XY Repeatability
±1–2 encoder units
Load
up to 1.5 kg/axis (XY) · 0.5 kg mass max (θ)
Speed
up to 200 mm/s (XY) · up to 1080°/s (θ)

TYPICAL APPLICATIONS
Volumetric Sample Alignment
Rotary Inspection & Probing
Multi-Axis Optical Alignment

FROM 1250 NM ENCODER
€ 8.880
excl. VAT
Finer encoder → higher resolution & price
Includes: 3 stages · multi-axis controller · cables · brackets
Also in HV / UHV

Wedge lift with XY System

XVP-80 + 2 x XLS-3-60-1250
Travel
40 mm / axis (XY), 10 mm (Z)
Encoder
1250 nm (up to 5 nm)
Repeatability
±1–2 encoder units
Load
up to 1.5 kg/axis
Speed
up to 200 mm/s

TYPICAL APPLICATIONS
Sample Tilt & Lift Alignment
Multi-Axis Inspection
Optical Height Positioning

FROM 1250 NM ENCODER
€ 10.240
excl. VAT
Finer encoder → higher resolution & price
Includes: 3 stages · multi-axis controller · cables · brackets
Also in HV / UHV

Need a different setup?

Any 2- to 6-axis combination of our linear, vertical and rotary stages is possible, in standard, HV or UHV. Tell us what you need and we'll come back with a configuration.

Technical Resource Hub

Specs, manuals, STEP files and software

Why Engineers Choose Xeryon Multi-Axis Stages

What changes when every axis is ultrasonic piezo

Modular by design

Up to 6 axes
XY, XYZ, XYθ, Zθ and 4-, 5- or 6-axis setups from standard stages

Mounting already solved
integrated mounting holes, standard adapter plates and five standard brackets

One controller
the XD-M drives the whole stack, from 1 to 6 axes

Ships fully assembled
by default, your setup arrives as one stack, already mounted to your configuration


Stable in every axis

Self-locking at rest
every axis holds its position when powered off — the XVP-80 with 30 N holding force

Sized for the whole stack
each axis carries the stages above it — XVP-80 lifts up to 1.5 kg, XVS up to 350 g with mass compensation

Low heat, no magnetic field
nothing warms or disturbs the sample at the top of the stack

Ready for your environment

HV / UHV across the range
linear, vertical and rotation stages are all available for 10⁻⁶ and 10⁻⁹ mbar

48 V operation
no high-voltage amplifiers in your setup

−30 °C to +70 °C
one operating range across the stages

Not sure which stages to stack?

Send us your axes, travel, load and resolution targets. Our integration engineers will propose a configuration — and say so if it isn't a fit.

Request a Quote Book a Video Call Reply within 1 business day

Where XYZ and Multi-Axis Piezo Stages Make the Difference

Key Industries and Applications

Made in Europe. Trusted globally.


Xeryon fills a niche we haven’t seen anywhere else. The combination of high dynamics, integrated encoder and holding force in such a lightweight, long-stroke actuator is unmatched. Any alternative would require multiple components and still fall short in accuracy and stability.

Chief Technology Officer

High-throughput tissue engineering company


The speed and precision of Xeryon’s actuators enabled us to significantly improve our microscope design and disrupt the market. Most importantly, it has allowed our customers to accelerate scientific discovery. It’s rare to achieve such a technological leap.

Director of R&D

Fluorescence microscope manufacturer


Our laser systems use a large number of motorized optics. After experiencing quality and delivery issues with our main supplier, we decided to give Xeryon a try. They have proven to be a reliable supplier, and we found their piezo actuators to be much more durable than the ones we used before.

Senior Optomechanical Designer

Ultrafast laser source manufacturer


At first, I found it hard to believe this level of performance could come from such a compact package. Xeryon’s technology was the only solution that made it possible to downsize our design and build the machine our company had envisioned, enabling the next generation of automated test equipment. Their team was also incredibly helpful in answering all of our integration questions.

Principal Mechanical Engineer

Leading semiconductor test equipment manufacturer

    Piezo XY and XYZ stages by Xeryon

    Our precision stages can be combined into different configurations such as XY, XYZ XTheta or XYTheta. The matching mounting hole patterns of our different stages make it very easy to build any configuration without the use of custom adapter plates. Anything is possible, from a single axis setup to four-, five-, or even six-axis motorised stage setups.

    These multi-axis setups allow you to position with nanometer precision and repeatability in multiple degrees of freedom, such as XY stages and XYZ stages. Thanks to the ultrasonic piezo drive technology of the individual stages, your multi-axis setup will have a long lifetime, position fast and noiseless and holds its position when powered off. One can even move at very low and constant speeds (µm/s).

    These features make it the perfect microscope stage or multi-axis sample stage for material science applications. All of our stages can be used in vacuum. Have a look at the specs of our individual stages for more information.

    Full measurement reports are available upon request.

    Not familiar with ultrasonic piezo technology? Have a look at our evaluation kits, the perfect way to experiment with our products!

    Frequently asked questions


    An XYZ stage is a motorized positioning system that moves a sample, optic or tool along three perpendicular linear axes — X, Y and Z. Adding rotation axes turns it into an XY theta, XYZ rotation or 4-, 5- or 6-axis stage.
