Long-stroke Linear Actuators
XLA Series - A Breakthrough in Motion Control
For decades, electric linear actuators have seen little true innovation.
Other electric micro linear actuators like voice coils, solenoids and traditional piezo actuators often lack speed, travel and durability.
Traditional electric linear actuators usually offer either a small size or a longer travel range, but not both.
Many existing technologies have reached their physical limits, blocking engineers from making the next big leap forward.
The Xeryon XLA is the answer to this problem.
A long-stroke actuator designed for the next generation of instruments, with superior speed, lifetime, ease of integration and high levels of precision.
Now available with an integrated controller, for ultimate compactness.

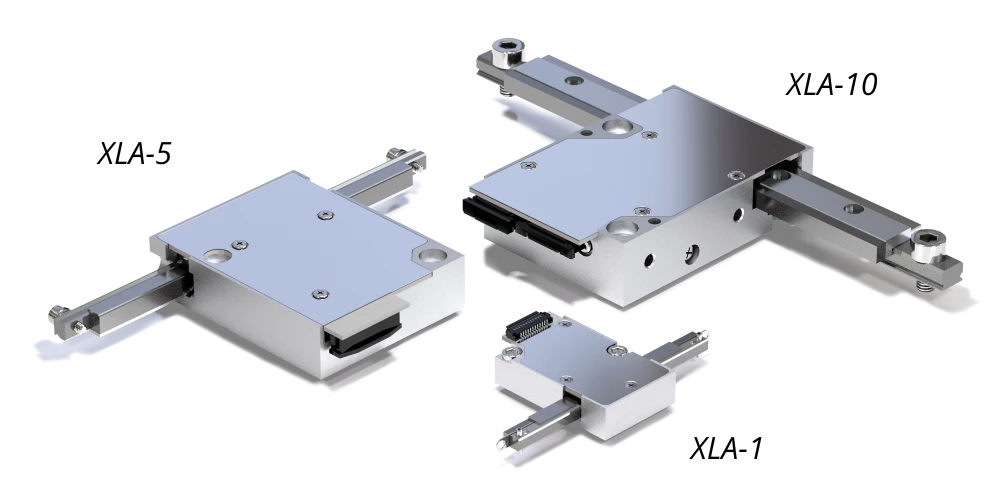

Long-stroke linear actuators with built-in encoder
XLA-1 XLA-5 XLA-10
Force (N): 1 5 10
Width (mm): 5.4 9.1* 11.5
All XLA's
Max. travel range (mm): 150
Encoder resolution (µm): 10 ... 0.08
Repeatability (µm): 10 ... 0.08
Max. velocity (mm/s): > 1000
Max. positioning rate (Hz): > 1000
Lifetime: > 1000 km / 20,000,000 cycles
Self-locking? Yes. Holds position, even when powered off.
Example applications: Lens positioning, pick-and-place, dispensing, stages, ...
Select your long-stroke linear actuator
Driving force
Rod length
= Travel range ⓘ:
Encoder resolution
Product code:
XLA-1-20-Open-L
Dimensions: 22,7 x 14,8 x 5,4 mm (4,9 mm without cover plate)
Pricing
| Encoder Resolution | Force | Development kit | ≥ 1 pc | ≥ 100 pcs | ≥ 1.000 pcs | ≥ 10.000 pcs |
|---|---|---|---|---|---|---|
| 10 µm | 1N, 5N or 10N | € 995 / $ 1,074 | € 474 / $ 512 | € 435 / $ 470 | Contact sales | Contact sales |
| 1 µm / 1.25 µm | 1N, 5N or 10N | € 995 / $ 1,074 | € 594 / $ 641 | € 545 / $ 588 | Contact sales | Contact sales |
| 250 nm / 312 nm | 1N, 5N or 10N | € 1.295 / $ 1,398 | € 834 / $ 900 | € 765 / $ 826 | Contact sales | Contact sales |
| 78 nm / 100 nm | 1N, 5N or 10N | € 1.495 / $ 1,614 | € 1.170 / $ 1,262 | € 1.073 / $ 1,158 | Contact sales | Contact sales |
Please contact us for a formal quote. Prices are indicative and subject to change without notice.
Prices include controller. For XLA-5, an optional integrated controller is available at the same price.
For rods lengths over 130 mm, a €100 / $108 surcharge is applied.
Development kits include everything needed for plug-and-play testing.

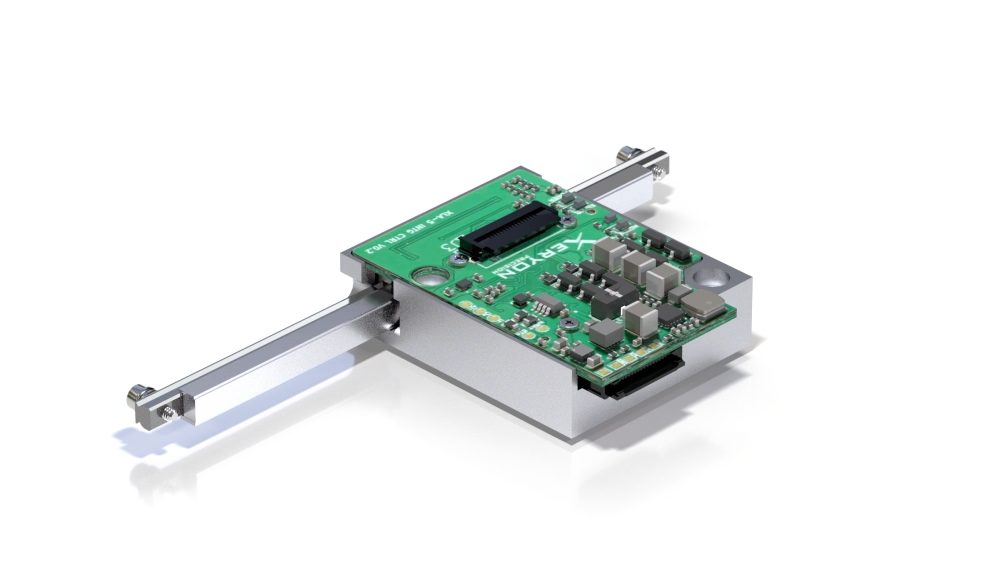

Now available with space-saving integrated controller
Big volumes or custom designs? Explore OEM solutions
Portable: lightweight, low-voltage, efficient & noiseless
Small linear actuator with long stroke
-
No drift
-
No backlash
-
Built-in encoder
-
Maintenance-free
-
Optional built-in controller
-
Does not generate magnetic field due to piezo technology
-
Holds position when powered off
-
Backdrivable
-
Noiseless due to ultrasonic motor
Technical details
Example applications
Xeryon's XLA micro actuators are engineered for highly accurate motion within a compact and lightweight structure. This design is also ideal for use in sectors such as medical technology and semiconductor manufacturing, where precise and efficient movement is critical, often in combination with a large stroke.
The combination of compact size, high precision and extensive travel range makes our long-stroke actuators uniquely suited for tasks in the following fields:

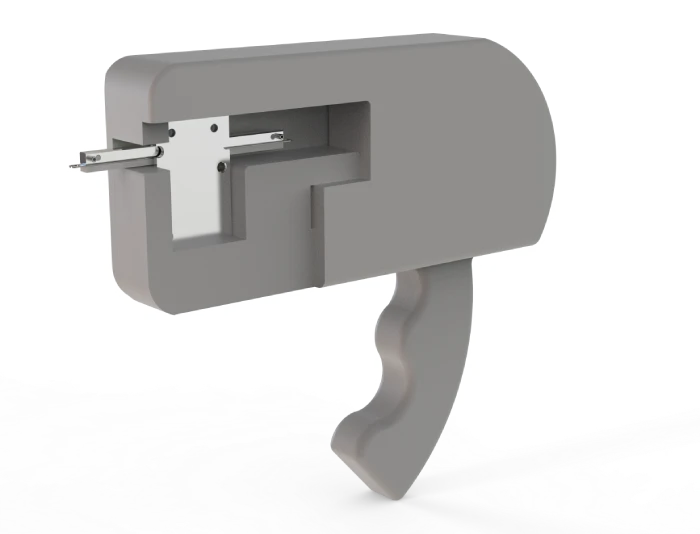

- Medical equipment: For precise movement in medical devices.
- Semiconductor production: Providing accurate positioning in semiconductor manufacturing.
- Precision instrumentation: Where accuracy is everything.
- Research and development: Suitable for experiments requiring exact motion control.
Try it yourself
Curious? Give the XLA a try with our remote demo station:
Testimonials
The speed and precision of Xeryon’s actuators enabled us to significantly improve our microscope design and disrupt the market. Most importantly, it has allowed our customers to accelerate scientific discovery. It’s rare to achieve such a technological leap.
Director of R&D
Fluorescence microscope manufacturer
Our laser systems use a large number of motorized optics. After experiencing quality and delivery issues with our main supplier, we decided to give Xeryon a try. They have proven to be a reliable supplier, and we found their piezo stages to be much more durable than the ones we used before.
Senior Optomechanical Designer
Ultrafast laser source manufacturer
At first, I found it hard to believe this level of performance could come from such a compact package. Xeryon’s technology was the only solution that made it possible to downsize our design and build the machine our company had envisioned, enabling the next generation of automated test equipment. Their team was also incredibly helpful in answering all of our integration questions.
Principal Mechanical Engineer
Leading semiconductor test equipment manufacturer
